The new member of our 4G DashCam family
The JC450 is an LTE DashCam system designed for commercial vehicles.
·
2 min read
This feature-rich camera system is capable of recording 4 separate channels simultaneously and provides valuable ADAS and DMS algorithms to actively assist drivers in improving awareness and safety on the road by providing real-time, actionable alerts. Video clips triggered by key events or the in-cab SOS button are saved to the cloud for later review or evidentiary support.
Other features of this system, including support for peripheral sensors, the ability to connect via WiFi, and expanded on-device storage, make the JC450 a perfect solution for a variety of applications across multiple industries.

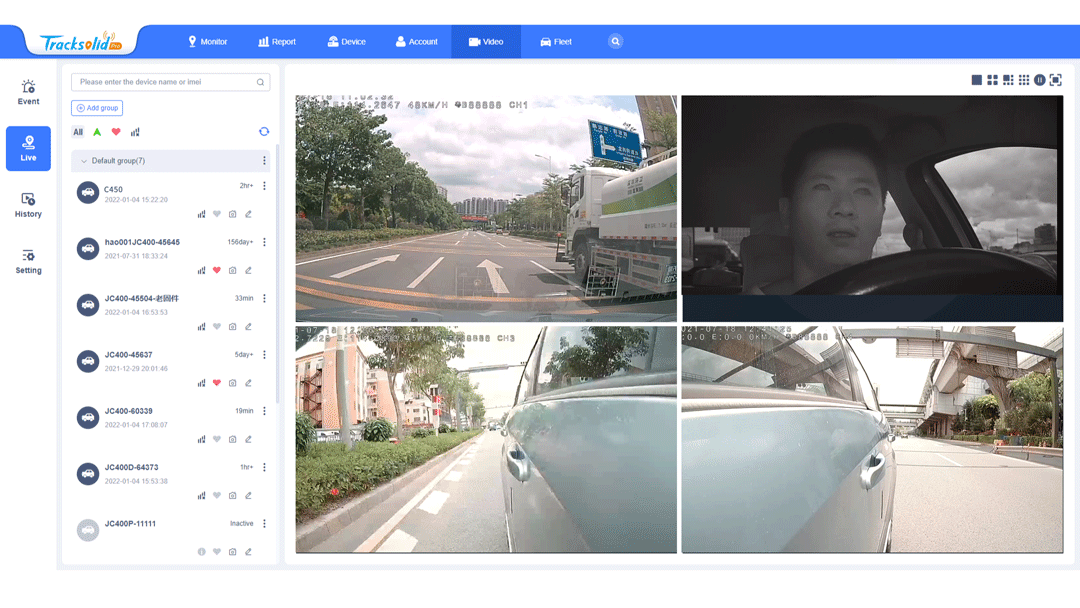

Video Visibility via Up to 4 Channels in Real-time
The JC450 has 1 built-in camera (720P by default or 1080P upon your request) and supports up to 3 remote cameras (optional) to monitor the outside, the cabin, the sides, the rear, or the driver of a vehicle regardless of it being in motion or parking. Some of the cameras can even sound alerts to remind drivers or passengers of any potential risks.
Driver Coaching/Assistance
Driver Fatigue/Distraction Monitoring (DMS)
The DMS camera (optional) can track the driver's face to monitor their attentiveness and warn them with in-cab alerts if needed.
Driving Behavior Analysis (DBA)
Advanced Driver Assistance (ADAS)

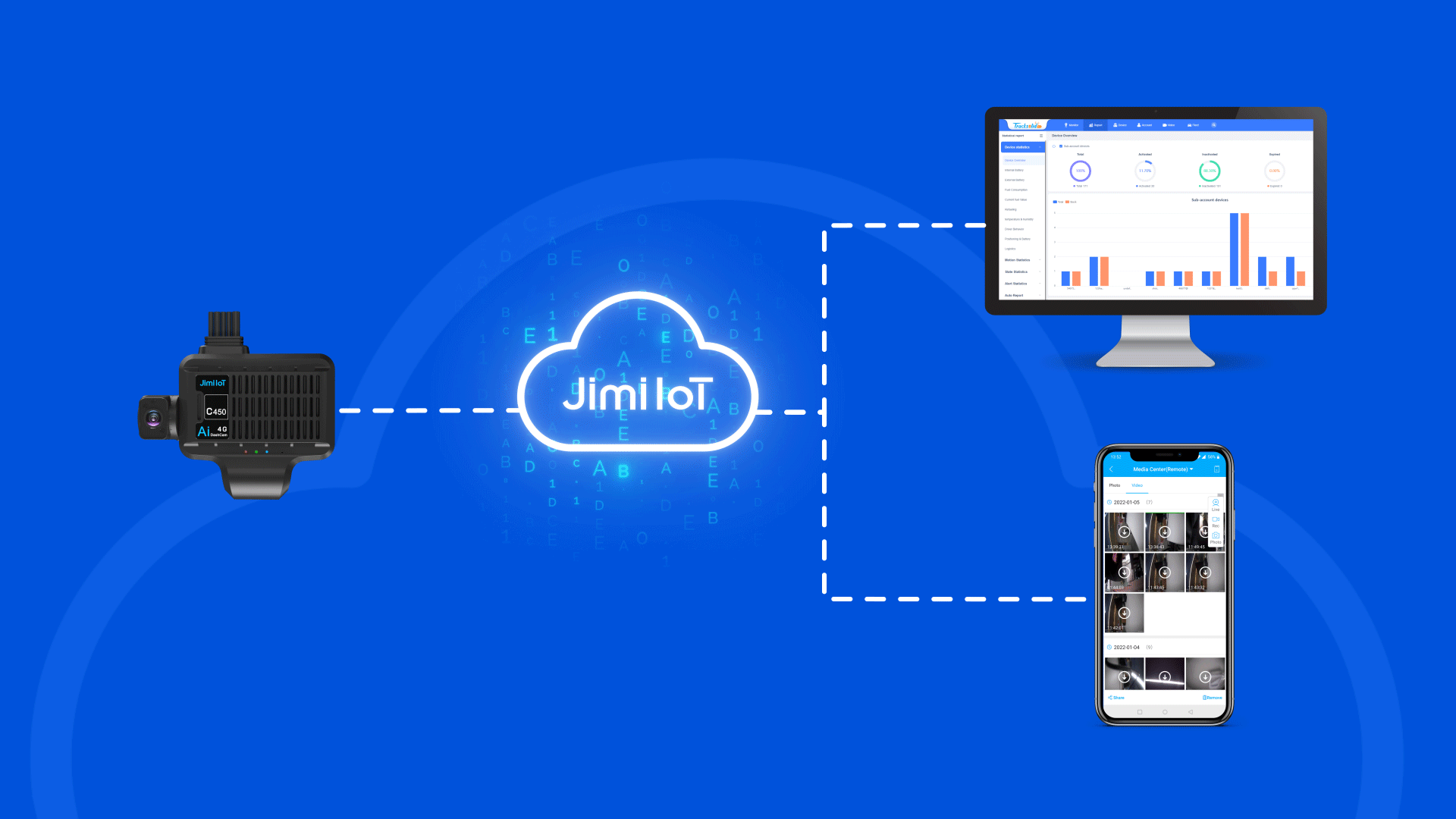

Critical Video to Cloud
Worry that critical video footage about collisions or other events overwritten by loop recording or be deleted accidentally or on purpose on your device? No worries. These data will remain unaffected by loop recording and will be uploaded to the platform for storage. They can be used as evidentiary support if any dispute arises in the near future.

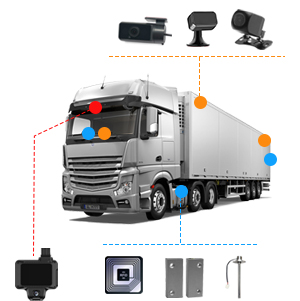

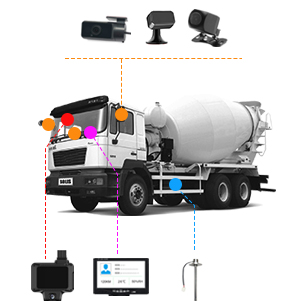

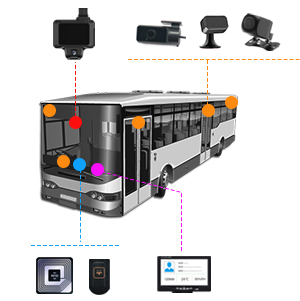

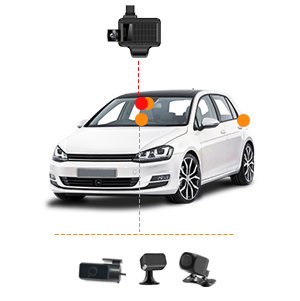

Flexible Configurations to Diverse Applications
The 9–33V DC power input of the JC450 makes it suitable for managing most types of fleets, especially heavy-duty ones; while the function expansion capability allows you to combine any compatible peripheral cameras and accessories with the JC450 road-facing camera unit to meet the specific requirements of your industry. (Note: If you have any questions about the install positions, please contact us.)
Specifications
| Network Connection | Frequency Bands | JC450-AFX (For North American countries and regions) | FDD-LTE: Bands 2, 4, 5, 12, 13, 14, 66, and 71 | WCDMA: Bands 2, 4, and 5 |
| JC450-AUX (For Latin American countries and regions) | FDD-LTE: Bands 1, 3, 7, 8, and 28 | TDD-LTE: Band 40 | WCDMA: Bands1 and 8 | GSM: Bands 3 and 8 |
| JC450-EUX (For European and Asian countries and regions) | FDD-LTE: Bands 1, 3, 7, 8, 20, and 28A | TDD-LTE: Bands 38, and 40 | WCDMA: Bands 1 and 8 | GSM: Bands 3 and 8 |
| WiFi | 2.4GHz 802.11b/g/n | |||
| Bluetooth | BT 4.0 | |||
| Hardware | Operating System | Android 7.1 | ||
| GNSS | GPS, BDS, and QZSS | |||
| G-sensor | 3-axis | |||
| Mic | √ | |||
| Speaker | √ | |||
| Memory | 2GB+8GB | |||
| Expandable Memory | Dual-Micro SD supported (max. 256GB for each) | |||
| SIM Card | Nano SIM | |||
| Video Coding | H.264/H.265 | |||
| Extension Interface | 1*Relay, 2*RS232, 2*Input, 1*AV-out, 1*AV-in | |||
| LED | Red (power), Green (GNSS), Blue (Cellular) | |||
| Camera | Road-facing Camera (main) | 720P (or 1080P) | ||
| Cabin-facing USB Camera (optional) | 720P, IR night vision | |||
| Inward-facing AHD camera (optional) | 720P, IR night vision | |||
| Driver-facing Camera (optional) | 720P, IR night vision | |||
| Blindspot Camera (optional) | 720P, IP67 | |||
| Others | Operating Voltage | DC 9–33V (Suitable for 12V and 24V vehicles) | ||
| Environment Requirement | Operating temperature: –20℃to 70℃ | |||
| Storage temperature: –30℃to 85℃ |
